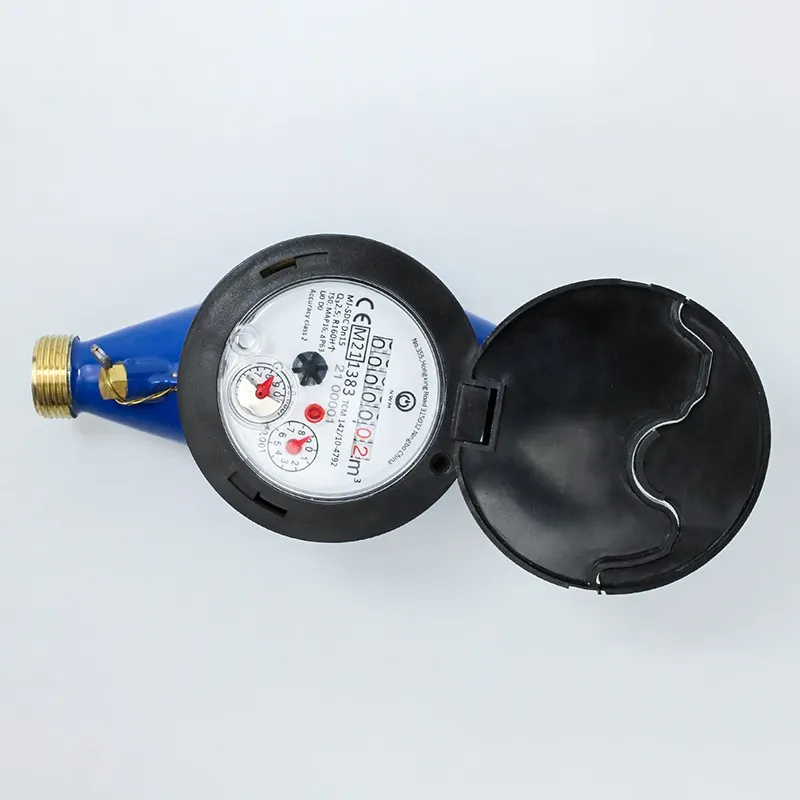

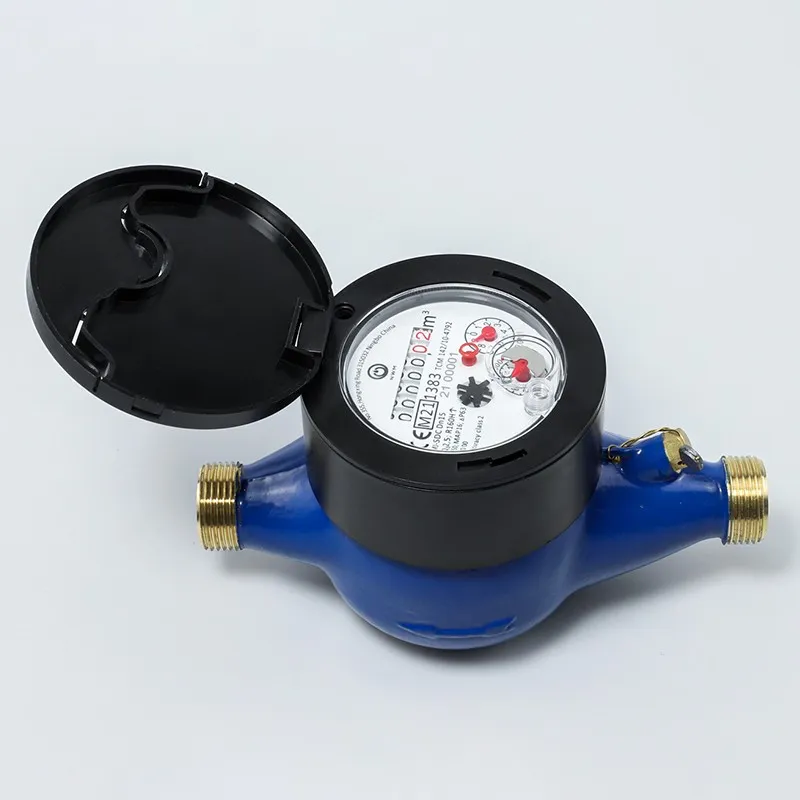

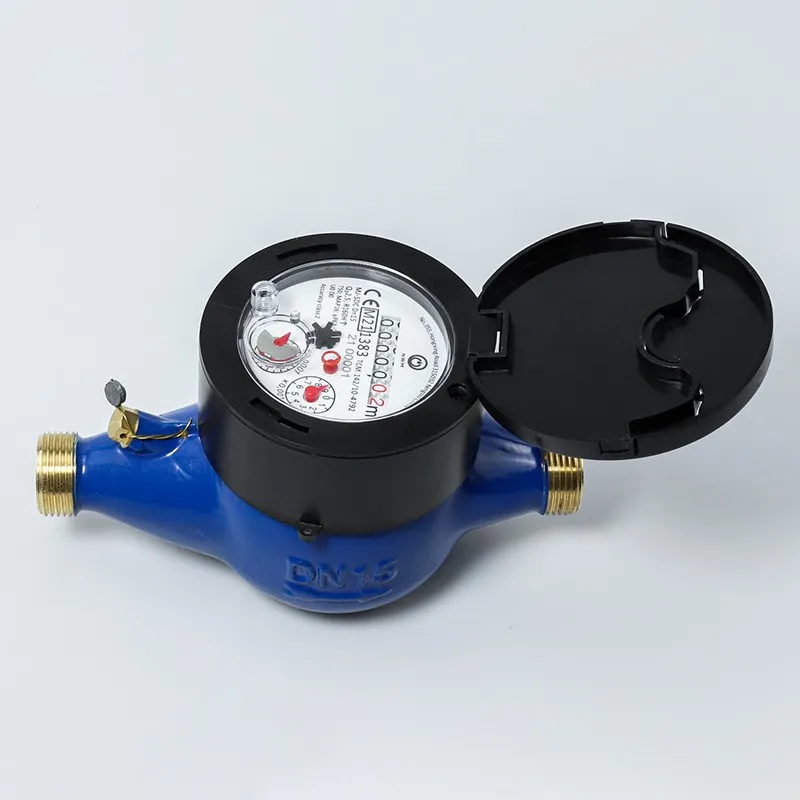

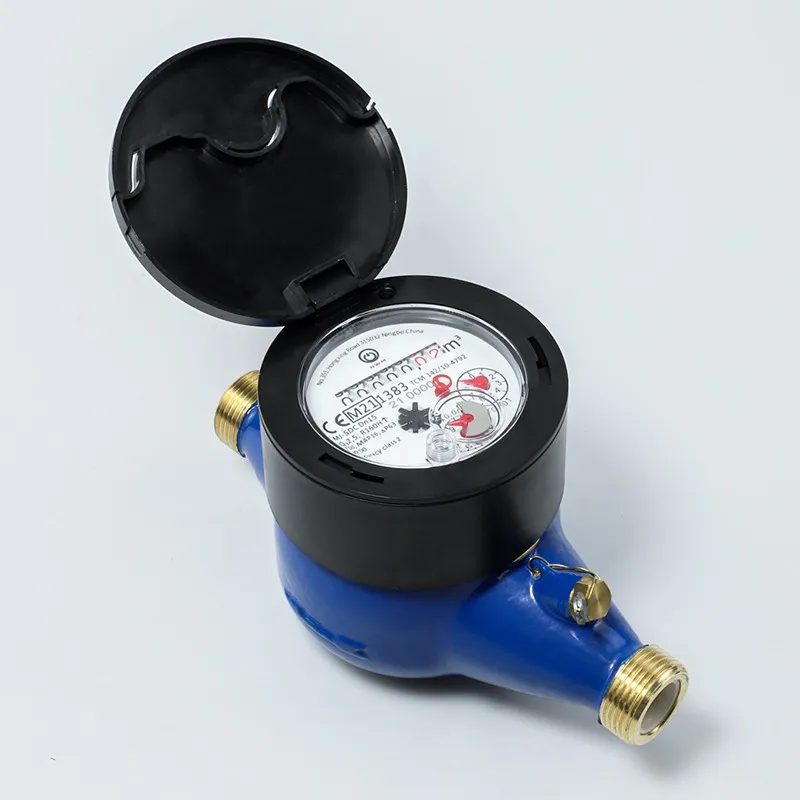

MJ-SDC is a dry-type multi-jet water meter that uses an inductive target (nonmagnetic) to transfer the data of measurement via the NB-IoT network to the smart metering management system.

● The transmission module and base meter is separately installed, easily exchanged. The power supply battery is independently packaged and is convenient to replace.

● Use the latest NB-IoT data transmission technology, network cover wide, the signal is stable and reliable.

● The transmission position is 1L.

● Based on the original Lora based flow meter, it can directly install a transmission module, only increase 28CM, the module can rotate, and it's very easy and convenient to install.

● The base meter adopts the independent function pointer, after installing the electronic module, it doesn't affect any reading.

● During the process of this LoraWan smart water meter with transmission module, it often happen the problem of repeated counting because the water ow reverse and shake. Using two sensors and a special algorithm can ensure the accuracy of the count.

● 26500+SPC1520 power combination technology.
