Brand Name: NWM
Model: SJ-SDC/SJ-SDC-PLUS
Type: Single Jet
Body Material: Brass
Ratio: R80/R160
Brand Name | NWM |
Model | SJ-SDC/SJ-SDC-PLUS |
Type | Single Jet |
Body Material | Brass |
Ratio | R80/R160 |
Size | Dn15/20/25/32/40 |
Customized Support | OEM, ODM |
Communication Port | RS485/MBus/NB-IoT/LoRa /LoRaWAN/Wireless MBus |
Installation Mode | Horizontal Installation |
Temperature Class | T30 (cold water)/T50 |
Pressure Rating | MAP16 |
Certificate | CE / MID |
Place of Origin | Ningbo, China |
Warranty | 2 years |

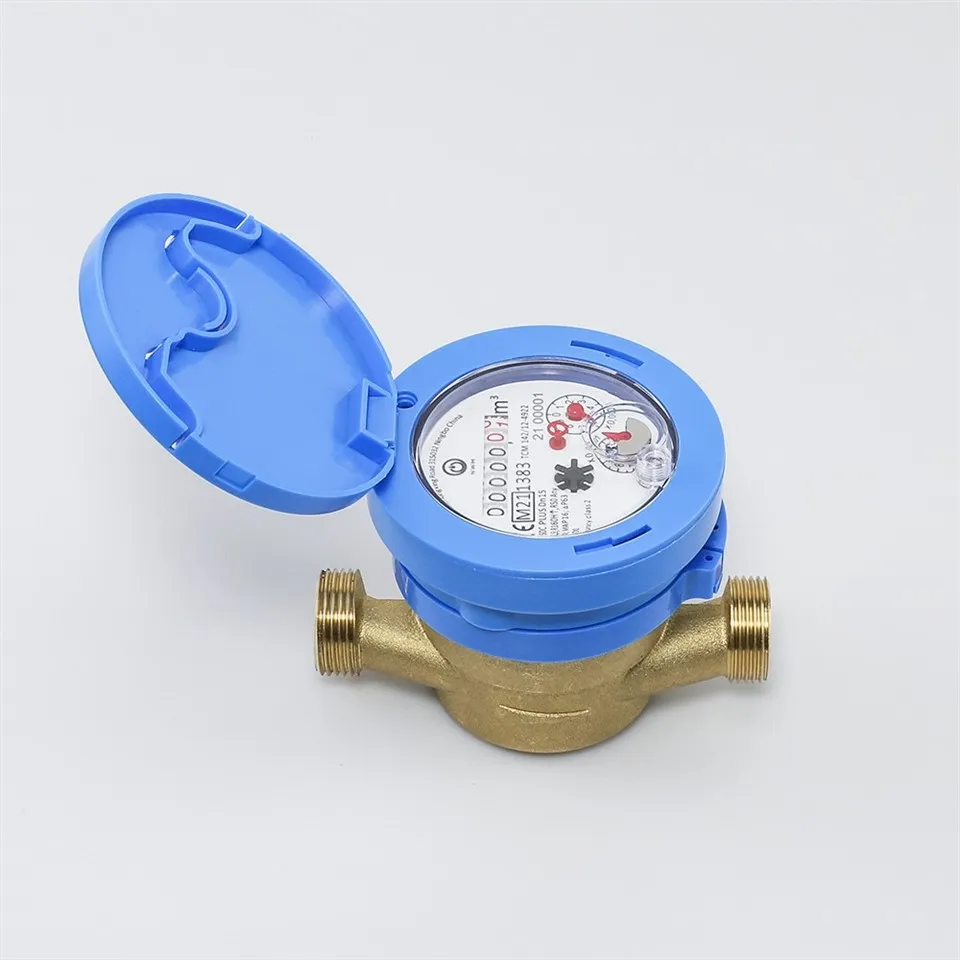

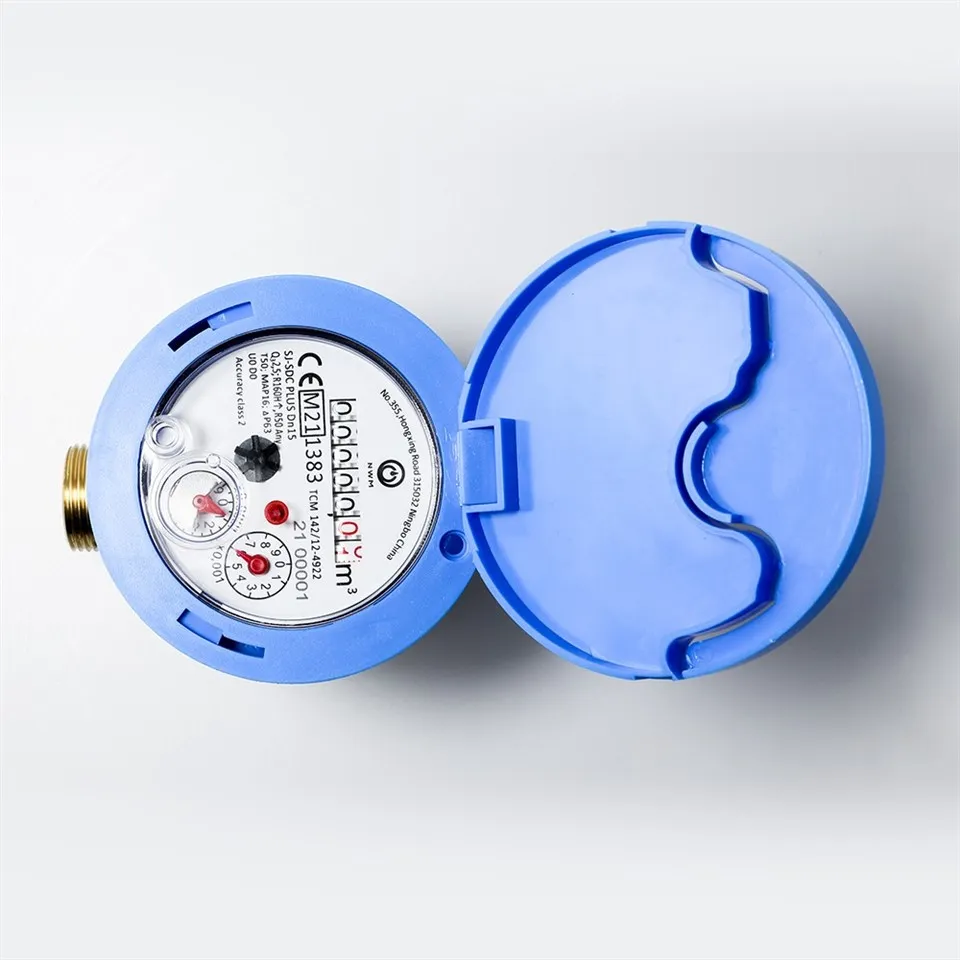

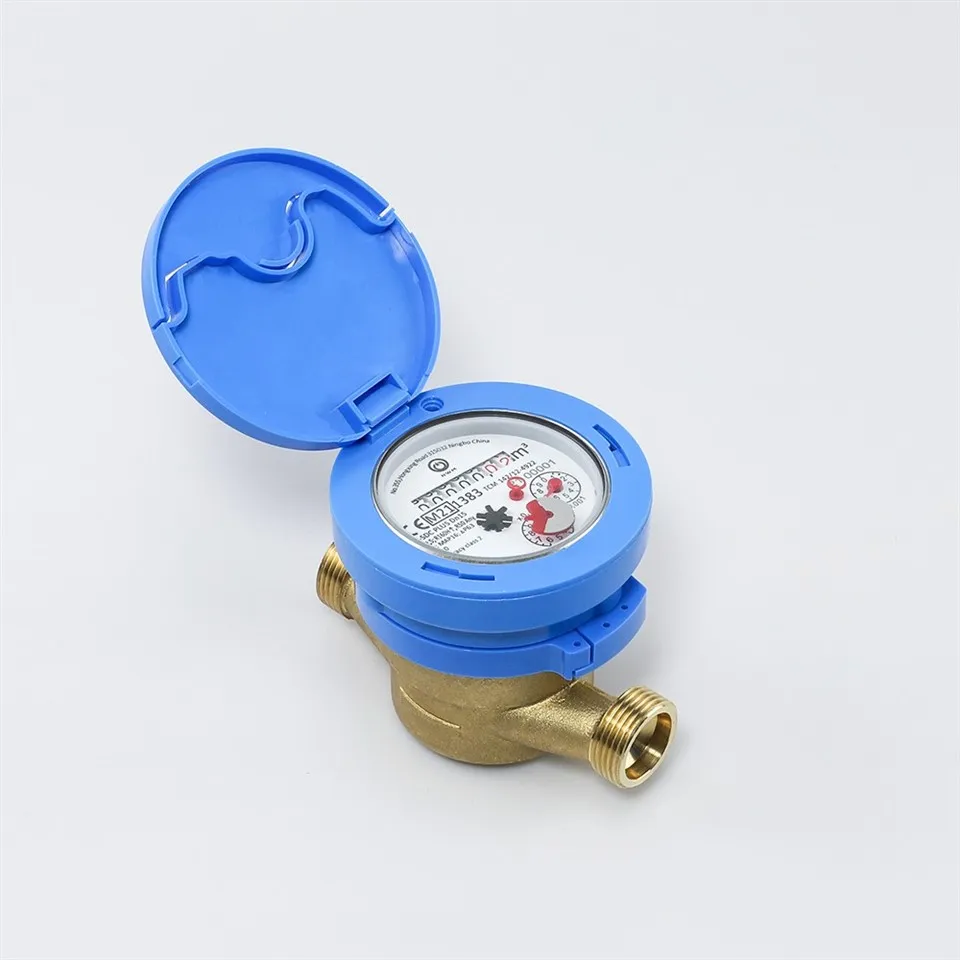

SJ-SDC/SJ-SDC-PLUS Single-Jet Dry Type With Non-magnetic Transmission Water Meter, with single-jet Dry Type water meter as base meter, through mechanical and electrical conversion of Non-magnetic counting function, transfer the data via NB-IoT network, centrally manage the water meters.

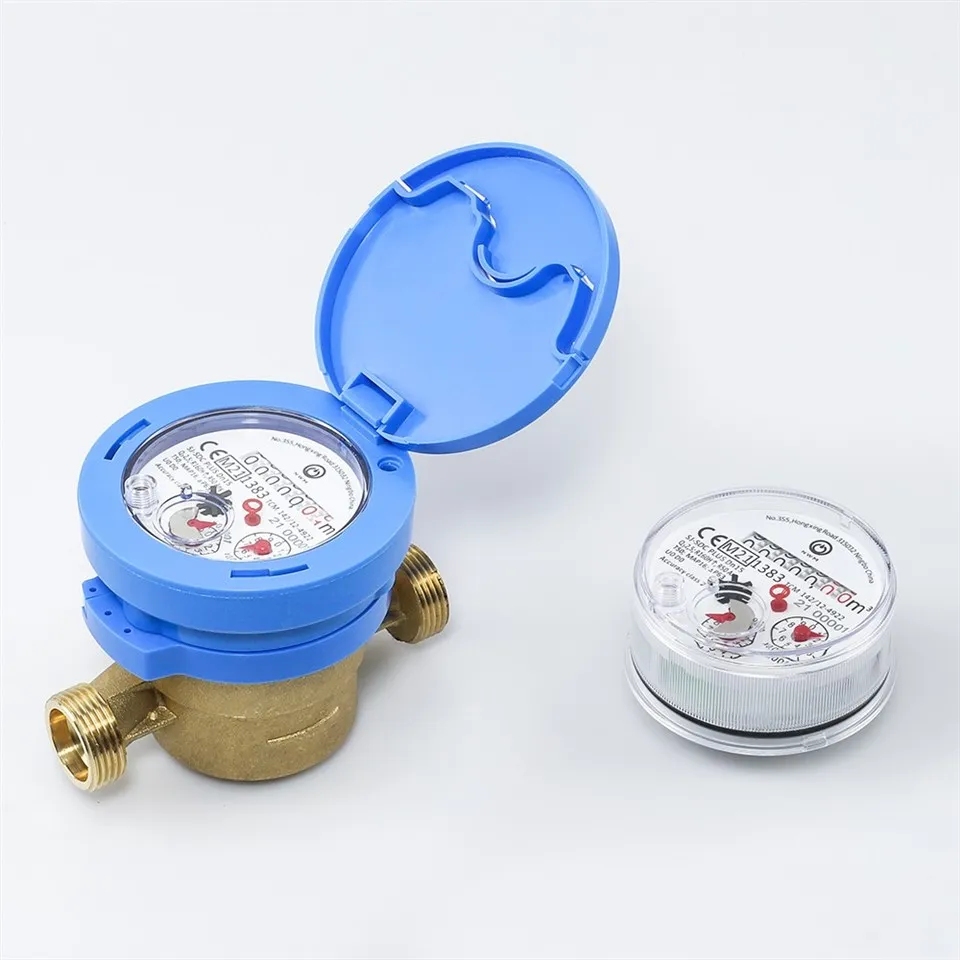

● The transmission module and base meter is separately installed, easily exchanged. The power supply battery is independently packaged and is convenient to replace.
● Use the latest NB-IoT data transmission technology, network cover wide, signal is stable and reliable.
● The transmission position is 1L.
● Based on the original base meter, it can directly install transmission module, only increase 28CM, the module can rotate, it's very easy and convenient to install.
● The base meter adopts the independent function pointer, after installing the electronic module, the digital flow meter water doesn't affect any reading.
● During the process of wireless water meter reading with transmission module, it often happens the problem of repeated counting because the water flow reverse and shake. Using two sensors and a special algorithm can ensure the accuracy of the count.
● 26500+SPC1520 power combination technology.
