Brand Name: NWM
Model: UL-BW
Type: Ultrasonic
Body Material: Ductile Iron
Brand Name | NWM |
Model | UL-BW |
Type | Ultrasonic |
Body Material | Ductile Iron |
Ratio | R250 |
Size | Dn50 / 65 / 80 / 100 / 125 / 150 / 200 / 250 / 300 |
Customized Support | OEM, ODM |
Communication Port | NB-IoT / LoRa / LoRaWAN / M-Bus / RS485 / GPRS / Pulse |
Installation Mode | Horizontal Installation |
Temperature Class | T30 (cold water)/T50 |
Pressure Rating | MAP1.6 |
Certificate | MID 2014/32/EU (In processing)/WRAS |
Place of Origin | Ningbo, China |
Warranty | 2 years |
Waterproof Rating | IP68 |

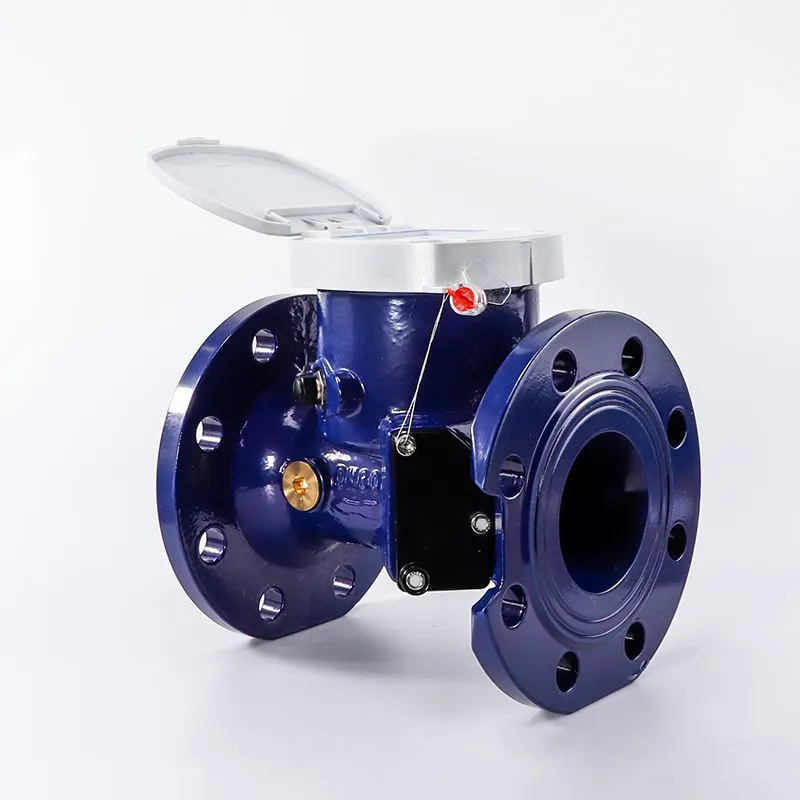

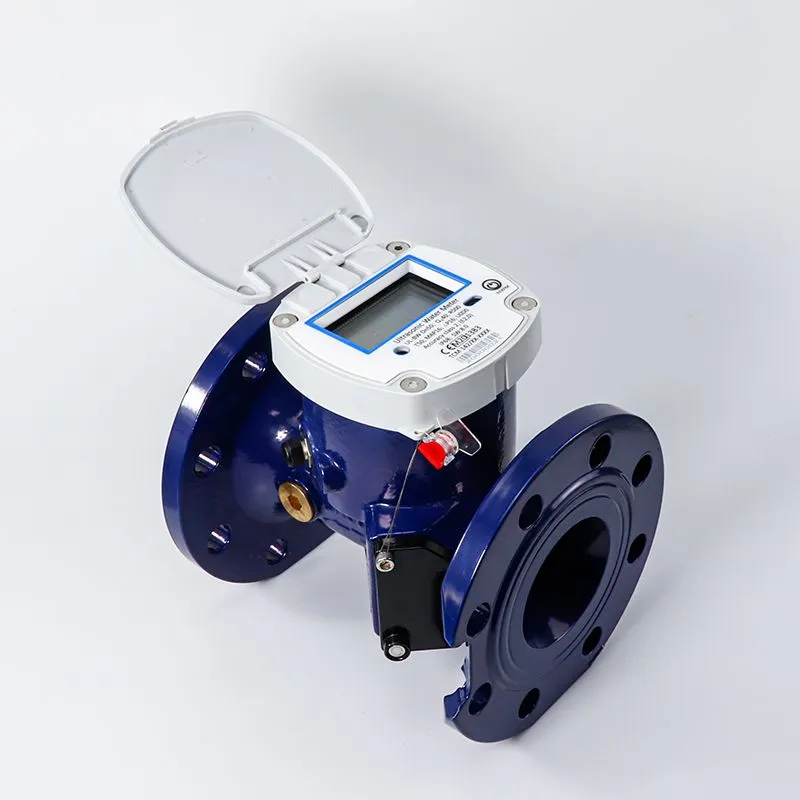

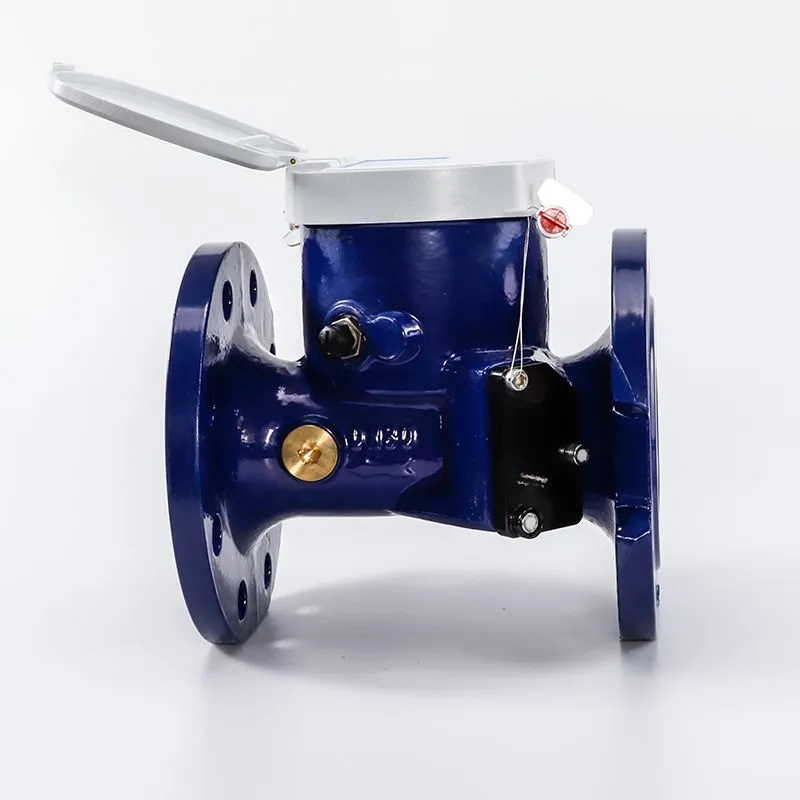

UL-BW smart ultrasonic water meter is a cast iron ultrasonic bulk meter with advanced sensors for precise and reliable measurement for commercial and industrial applications. The meter combined with high-tech IoT technology for both superior hydraulic performance and instant alarm to realize smart water management.
● Non-moving parts permit reliable performance, long service life and low pressure loss;
● High accuracy, unaffected by sand, suspended solids or air pockets;
● Long battery life--->10years; possible to keep the external battery bag for easy to exchange;
● AMR ready for wireless, or RS485/M-BUS and other wired communication modes.
● A smart ultrasonic water meter with rectifying device.
FOR CLASS I
a.From Q1 inclusive up to but excluding Q2 is ± 1%; From Q2 inclusive up to and including Q4 is ± 3%;
FOR CLASS II
b.From Q1 inclusive up to but excluding Q2 is ± 2%; From Q2 inclusive up to and including Q4 is ± 5%;
