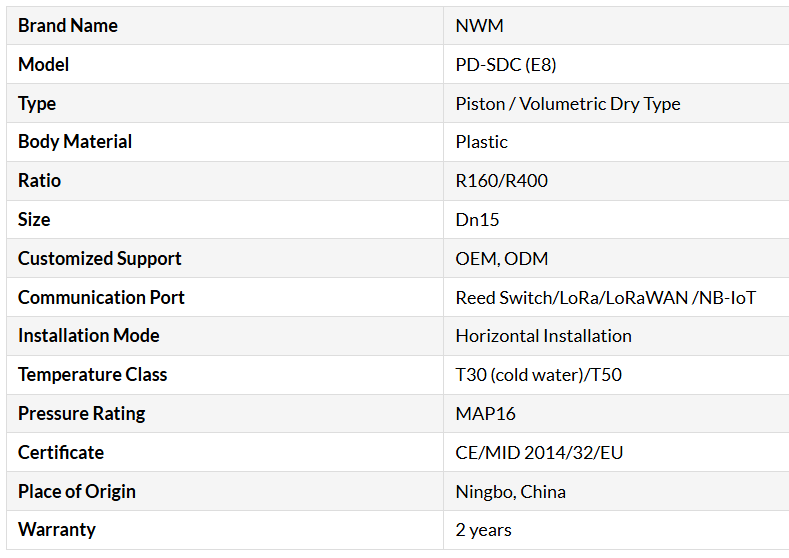

Brand Name: NWM
Model: PD-SDC (E8)
Type: Piston / Volumetric Dry Type
Body Material: Plastic

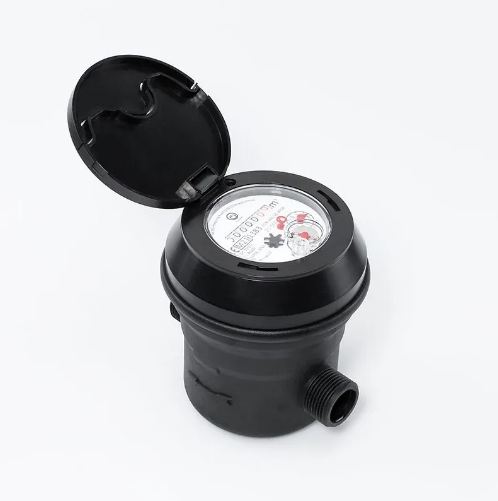

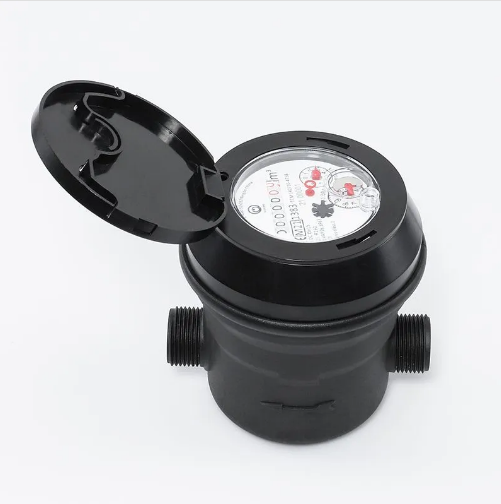

● All the materials of this plastic water flow meter selected by resistance to corrosion;
● Cold water meter under current standard for lower than 30℃(T30), but NWM MJ-LFC F5 can be used safely in water temperature up to 50℃ (T50);

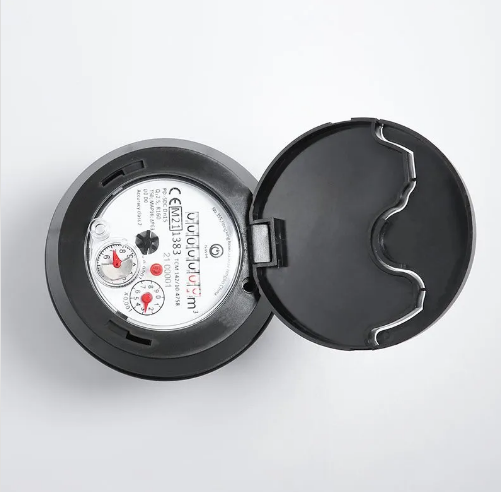

● The ROTARY indicator register for the most comfortable reading position is of 8 Rollers and 1 Pointer, with pulse output pre-equipped at 10 liters/pulse;
● The Piston is the main moving parts in contact with water permitting the most reliable;
● The extra inlet filter at the inlet of the meter body permits cleaning it without breaking the metrological seal;
● Large range ratio, strong repeatability;
● Reserve remote transmission function to realize data transmission;
● Non Return Valve to be installed in the plastic water flow meter to avoid the reserve flow Rate AS OPTION.
