Brand Name: NWM
Model: PD-SDC
Type: Piston / Volumetric Dry Type
Body Material: Brass
Ratio: R160/R200
Brand Name | NWM |
Model | PD-SDC |
Type | Piston / Volumetric Dry Type |
Body Material | Brass |
Ratio | R160/R200 |
Size | Dn15/20/25/32/40 |
Customized Support | OEM, ODM |
Communication Port | RS485/MBus/Reed Switch/LoRa/LoRaWAN /NB-IoT |
Installation Mode | Vertical Installation |
Temperature Class | T30 (cold water)/T50 |
Pressure Rating | MAP16 |
Certificate | CE/MID 2014/32/EU |
Place of Origin | Ningbo, China |
Warranty | 2 years |

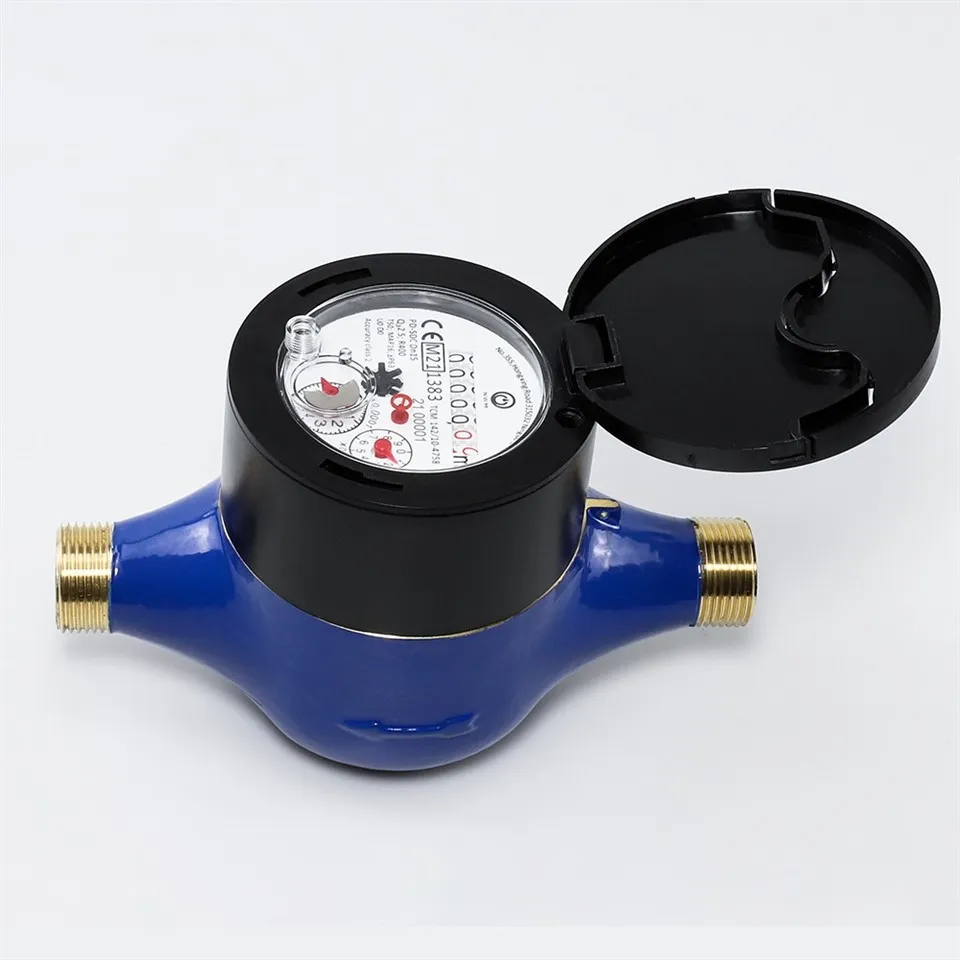

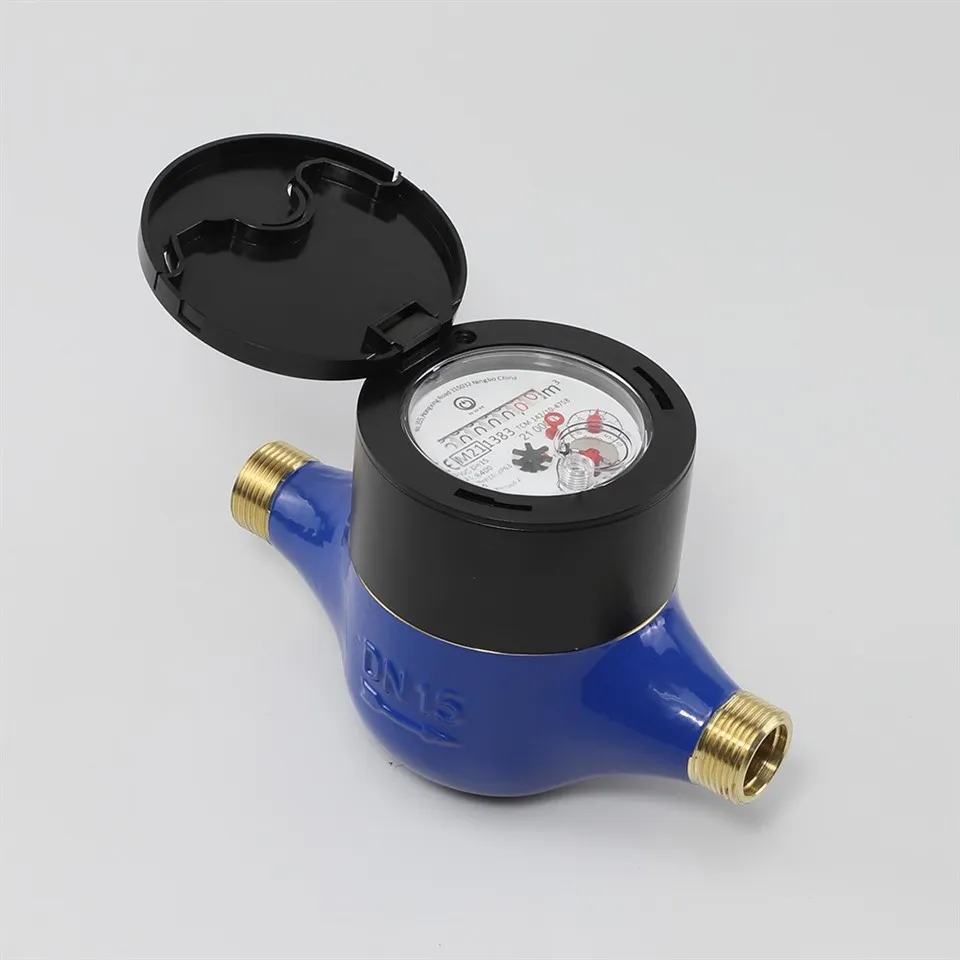

PD-SDC Volumetric Dry Type With Non-magnetic Transmission Water Meter, Volumetric Dry Type water meter as base meter, through mechanical and electrical conversion of Non-magnetic counting function, transfer the data via NB-IOT network, centrally manage the water meters.

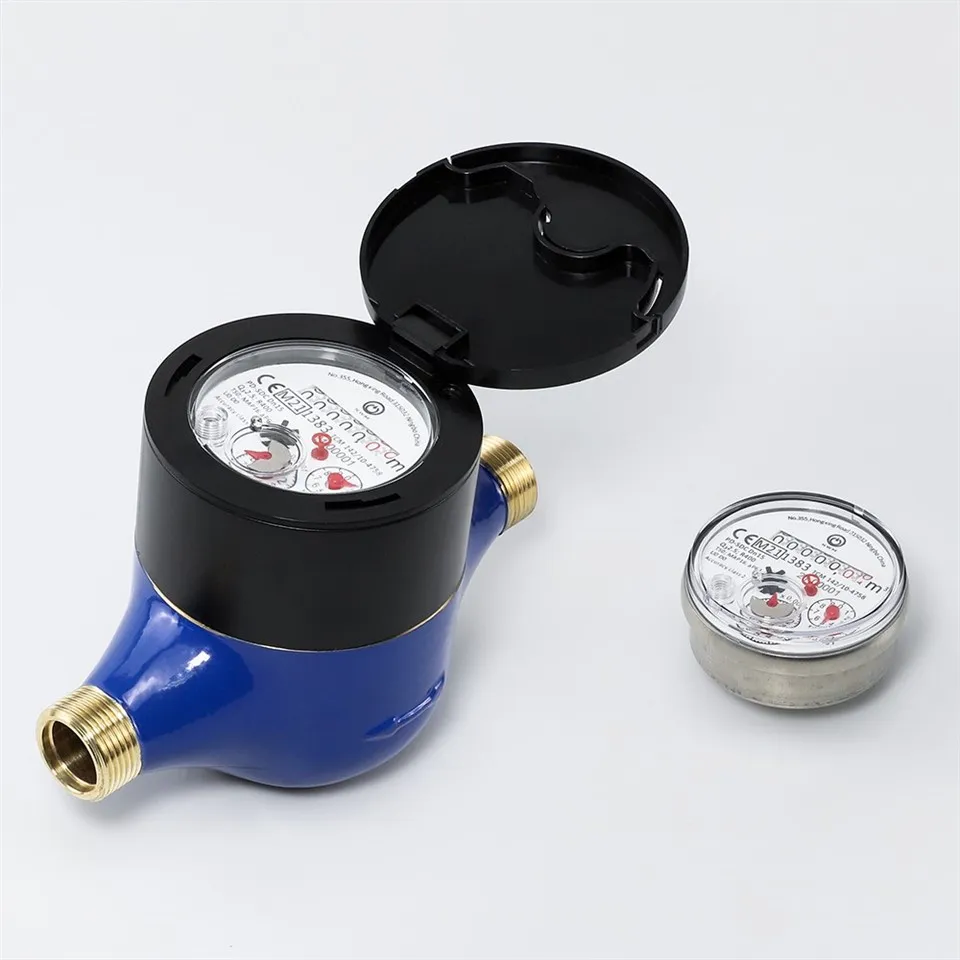

● The transmission module and base meter is separately installed, easily exchanged. The power supply battery of the digital smart water meter is independently packaged and is convenient to replace.
● Use the latest NB-IoT data transmission technology, network cover wide, signal is stable and reliable.
● The transmission position is 1L of this commercial smart water meter.
● Based on the original base meter, it can directly install transmission module, only increase 28CM, the module can rotate, it's very easy and convenient to install.

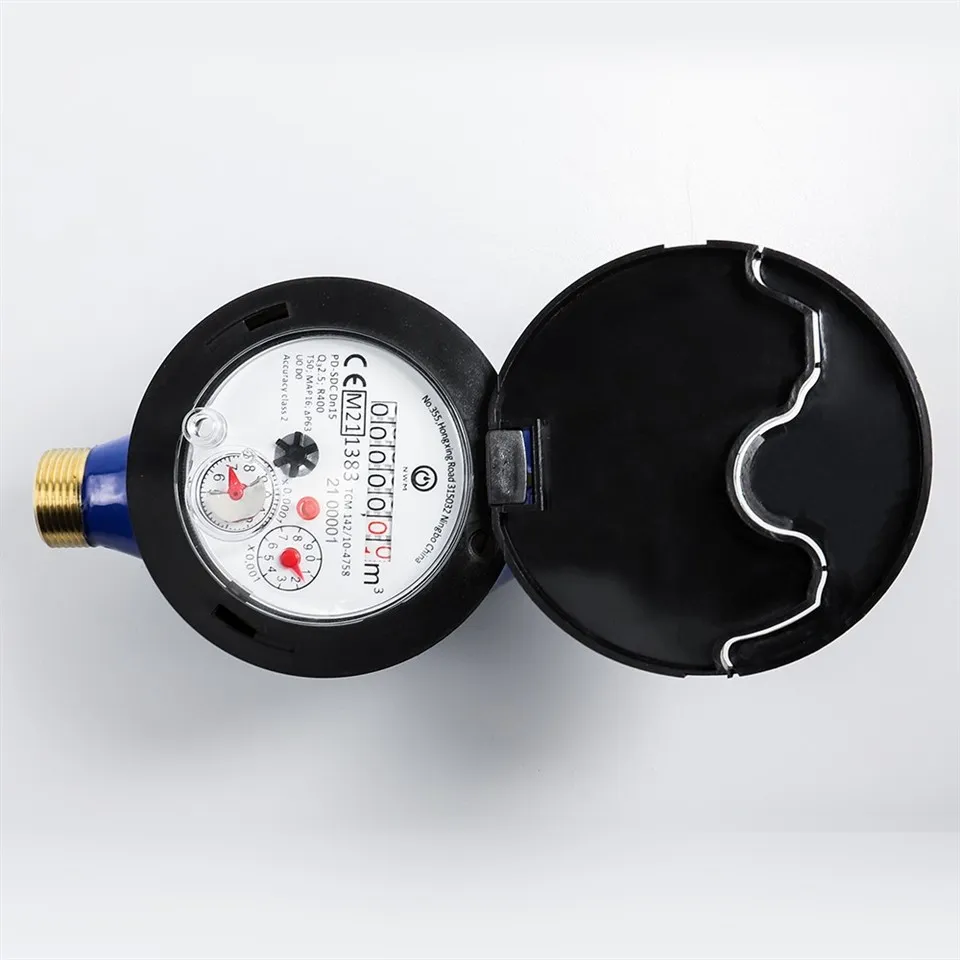

● The base meter adopt the independent function pointer, after installing the electronic module, it doesn't affect any reading.
● During the process of water meter with transmission module, it often happen the problem of repeated counting because the water ow reverse and shake. Using two sensors and a special algorithm can ensure the accuracy of the count.
● 26500+SPC1520 power combination technology.
