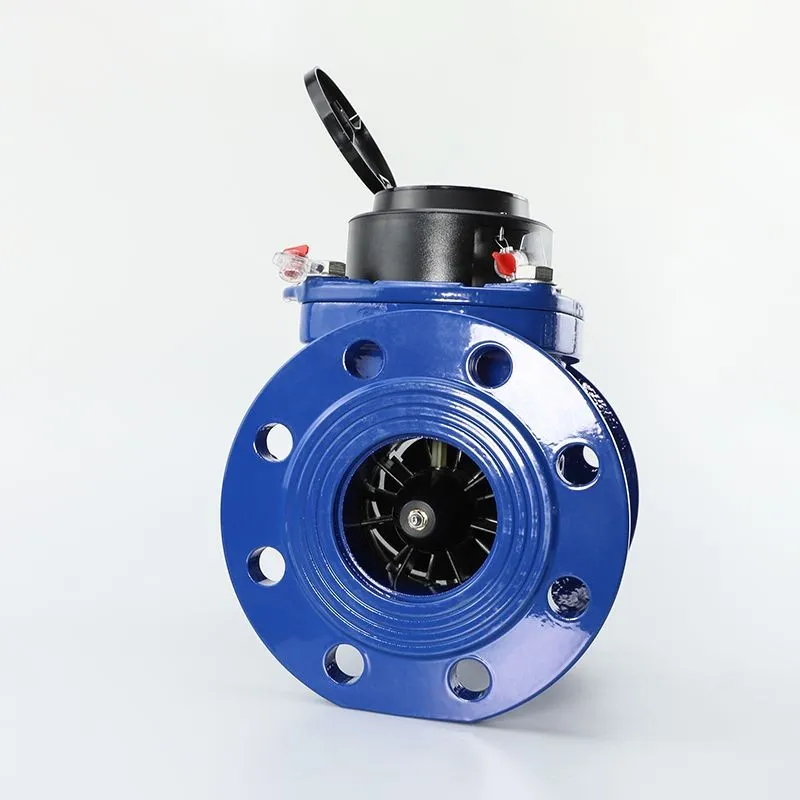

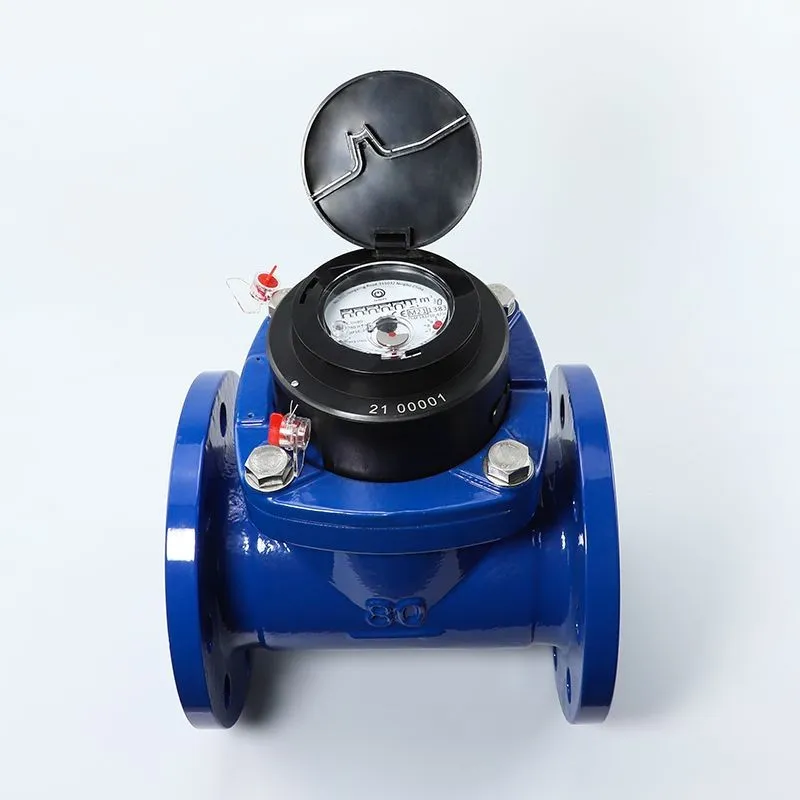

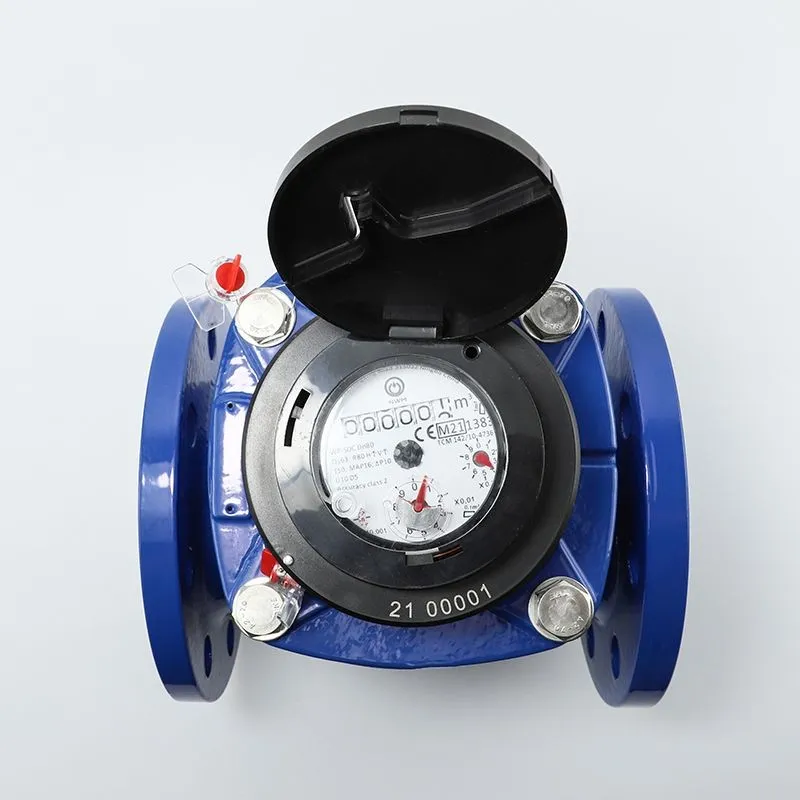

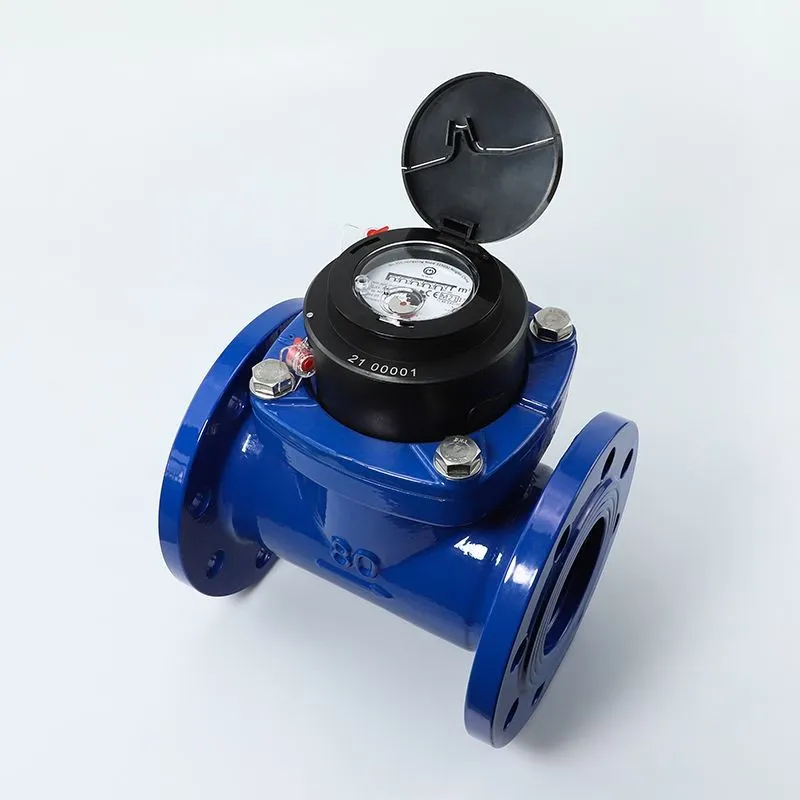

WP-SDC / WPI-SDC (NB-IoT application) is the smart water meter based on woltman /tangencial dry type water meter, the meter reading is transferred via pulse output cable and connect with NB-IoT module for wireless remote reading and realize multiply functionalities include real time flow status monitoring and consumption behavior analysis.

● The transmission module and base meter is separately installed, easily exchanged. The power supply battery of the woltman bulk water meter is independently packaged and is convenient to replace.

● Use the latest NB-IoT data transmission technology, network cover wide, signal is stable and reliable.

● The transmission position is 1L.

● Based on the original base meter, it can directly install transmission module, only increase 28CM, the module can rotate, it's very easy and convenient to install.

● The base meter adopt the independent function pointer, after installing the electronic module, it doesn't affect any reading.

● During the process of water meter with transmission module, it often happen the problem of repeated counting because the water ow reverse and shake. Using two sensors and a special algorithm can ensure the accuracy of the count.

● 26500+SPC1520 power combination technology in the woltman bulk water meter.

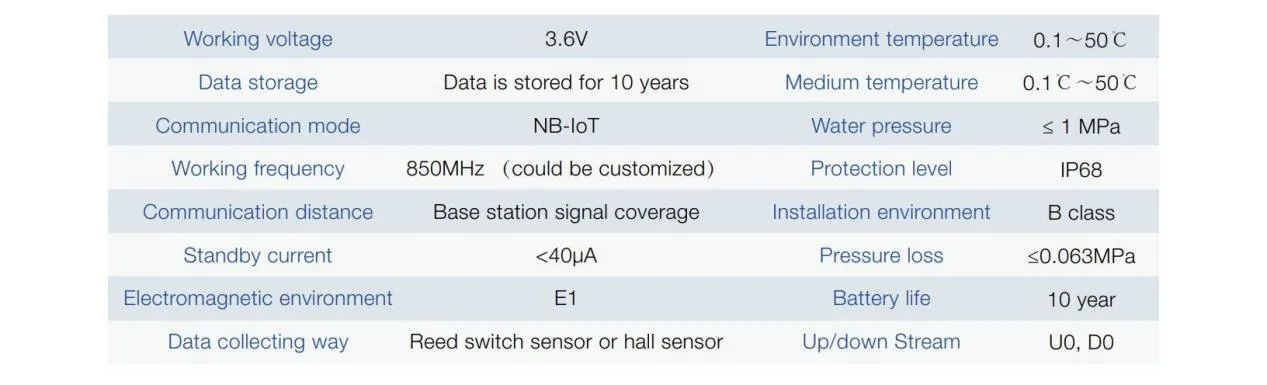

Main Technical Data

The battery inside the NB-IoT module is replaceable. If the meter has already been installed, it no need to remove the module, just directly replace the battery.

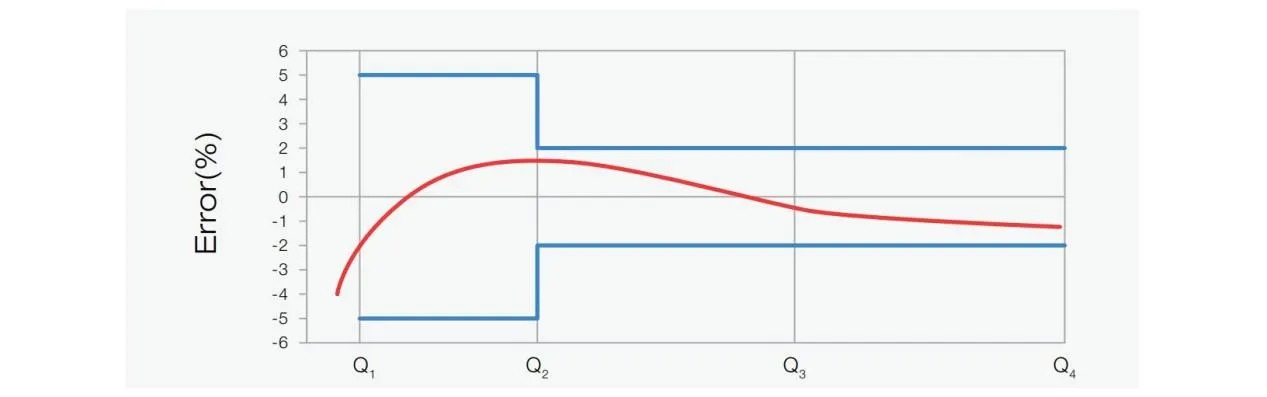

Metrology

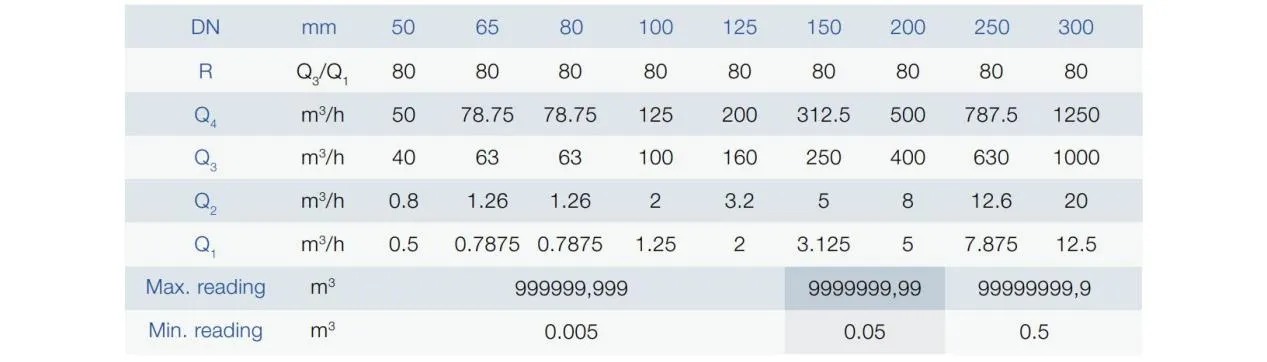

Technical data of the mechanical parts (Woltman model WP-SDC,MID approved)
