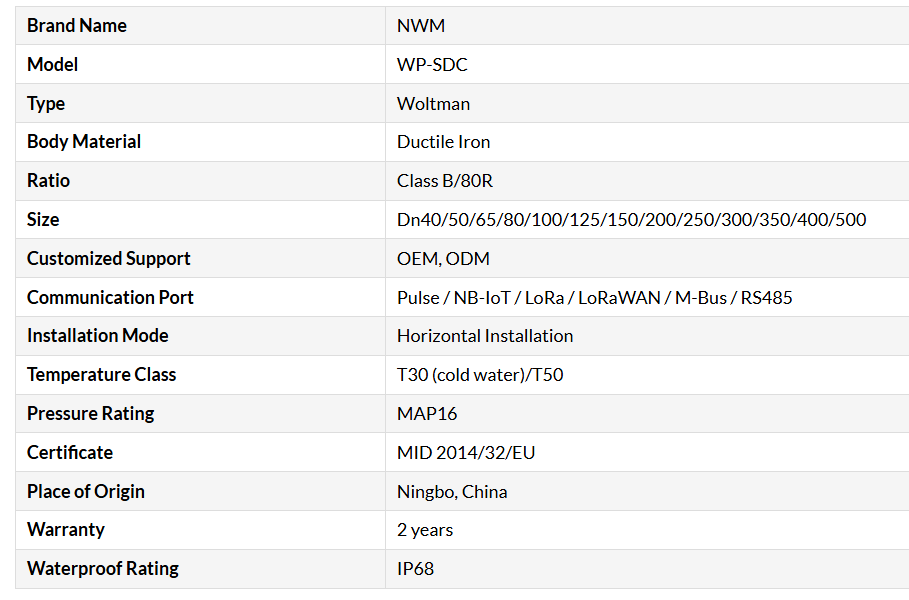

Brand Name: NWM
Model: WP-SDC
Type: Woltman
Body Material: Ductile Iron

● All the materials in contact with water, consciously selected by the known resistance to Corrosion. Iron body with inside and outside epoxy coating for protecting the corrosion;
● The ROTATING indicator register for the most comfortable reading position;
● The copper can super dry register with lP68 protection; The interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body form the pipe;
● Suitable for any position installation;
● Low pressure loss;
● No effected by external magnetic fields;
● Pulse output always ready, and Pulse output AS OPTION:The Pulse Output Device consists of a plastic housing with a Reed Switch, and 1.5 meter cable with 2 cores in Red and Black.
● Electric Data: Vmax=24AC/DC; Imax=0,01A; Capacity of the Pulse Emitter.
